Spare Parts

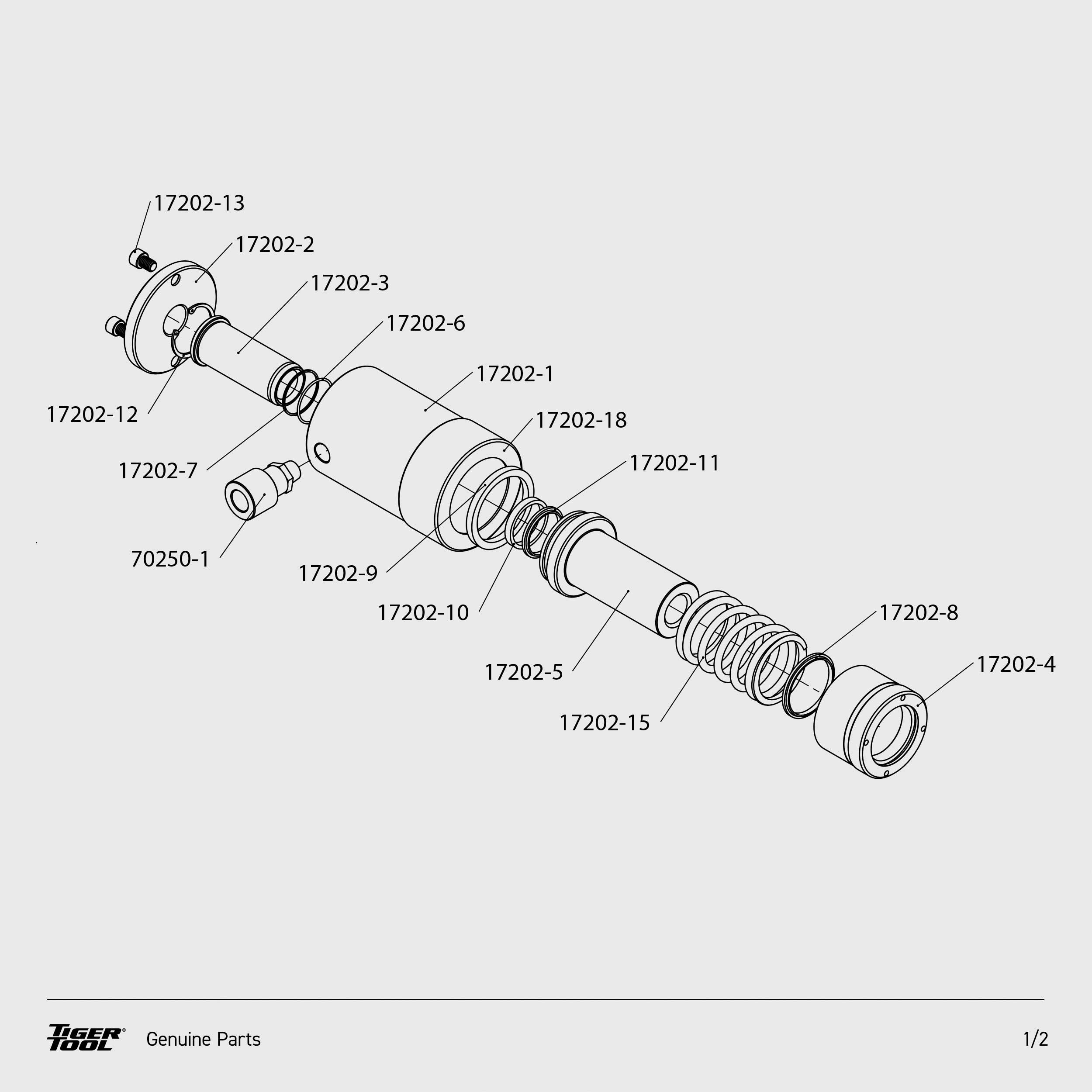

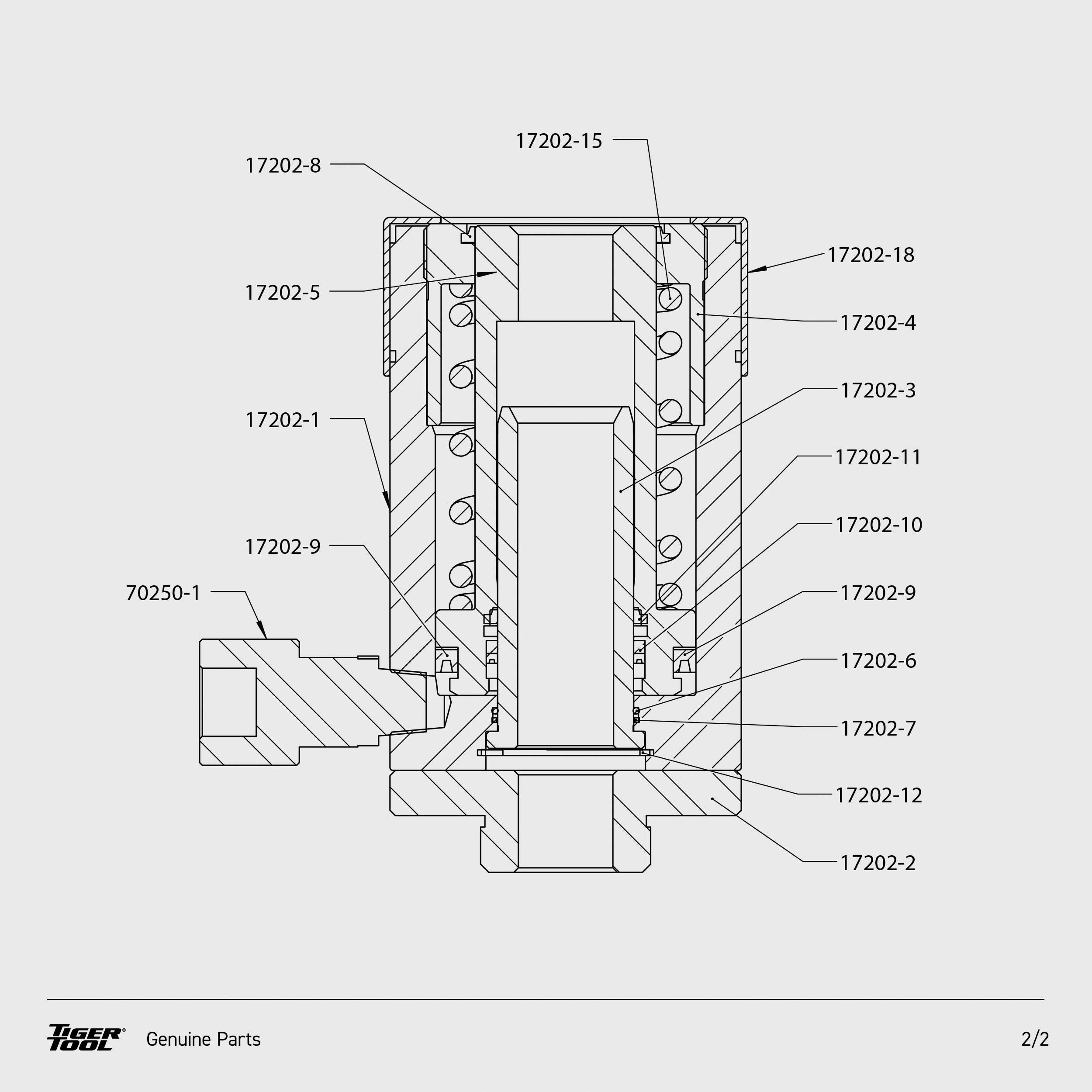

20 Ton Hydraulic Cylinder
Seal Kit (17202-SK) Available
This kit consists of the necessary parts to service the seals in the 20 Ton Hydraulic Cylinder.
This kit consists of the necessary parts to service the seals in the 20 Ton Hydraulic Cylinder.
Part Number
17202-SK
Number Required
1
Price
$55.28
Description
Seal Kit
Part Number
17202-1
Number Required
1
Price
$407.68
Description
20 Ton Cylinder Body
Part Number
17202-2
Number Required
1
Price
$141.96
Description
Threaded End Plate
Part Number
17202-3
Number Required
1
Price
$64.61
Description
Inner Cylinder Tube
Part Number
17202-4
Number Required
1
Price
$130.38
Description
Cylinder Cap
Part Number
17202-5
Number Required
1
Price
$211.66
Description
20 Ton Piston
Part Number
17202-6
Number Required
1
Price
$0.22
Description
O-Ring
Part Number
17202-7
Number Required
1
Price
$4.41
Description
Backup Ring
Part Number
17202-8
Number Required
1
Price
$3.05
Description
ANW21 Dust Seal
Part Number
17202-9
Number Required
1
Price
$28.50
Description
Large Piston Seal
Part Number
17202-10
Number Required
1
Price
$13.89
Description
Small Piston Seal
Part Number
17202-11
Number Required
1
Price
$2.81
Description
Dust Seal
Part Number
17202-12
Number Required
1
Price
$1.50
Description
Retaining Ring
Part Number
17202-13
Number Required
2
Price
$0.87
Description
3/8" - 16 X 1/2" Socket Head Cap Screw
Part Number
17202-15
Number Required
1
Price
$10.14
Description
20 Ton Spring
Part Number
17202-18
Number Required
1
Price
$13.59
Description
Cylinder Sleeve
Part Number
70250-1
Number Required
1
Price
$41.85
Description
Female Coupler
