SKU 20175

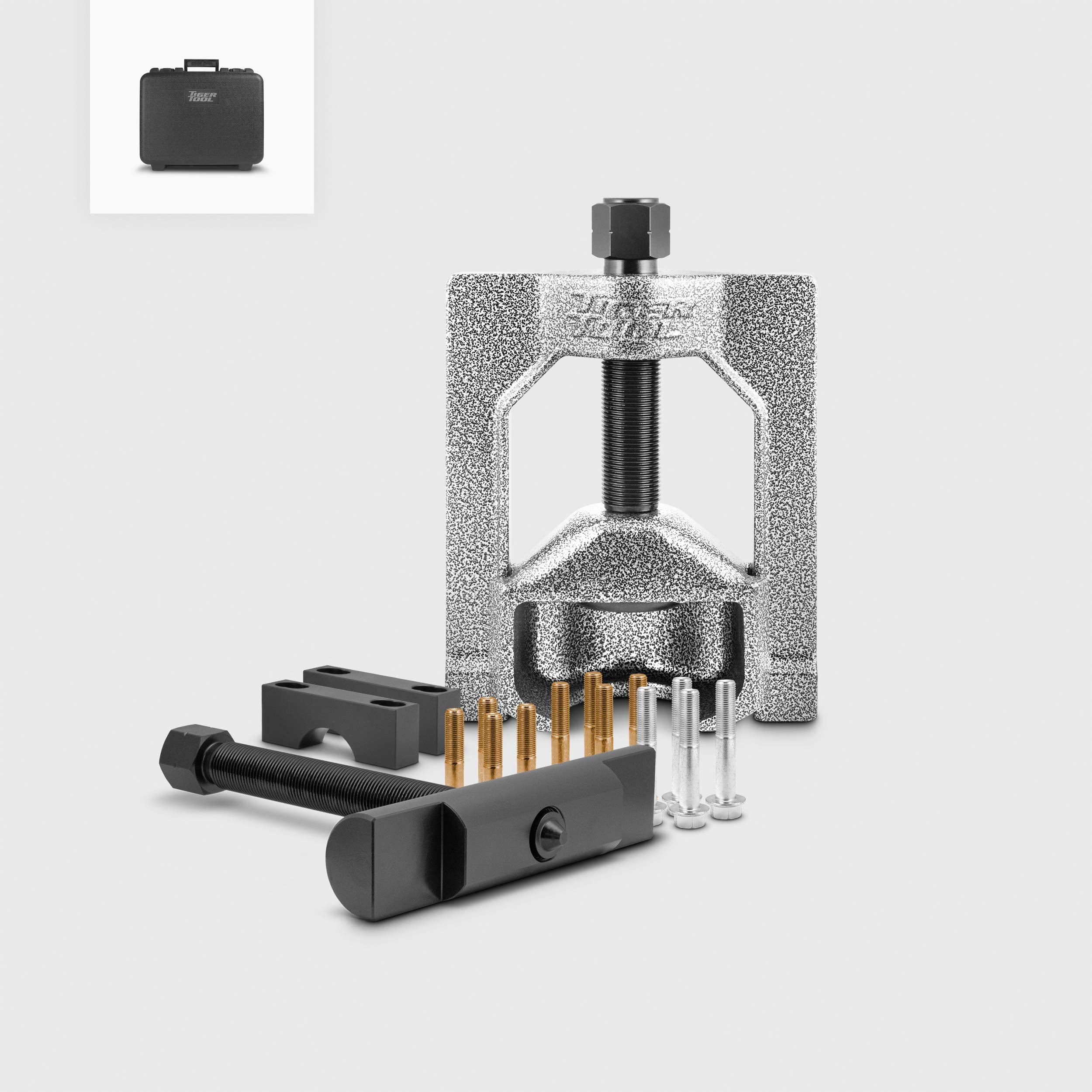

Commercial Driveline Service Kit

$742.99 USD

Features two of our most popular tools for servicing heavy-duty drivelines.

Kit Includes

10102 | Commercial U-Joint Puller
Provides ultimate brute strength for disassembling even the most seized u-joints in minutes on virtually all Class 7 and 8 trucks and machinery.

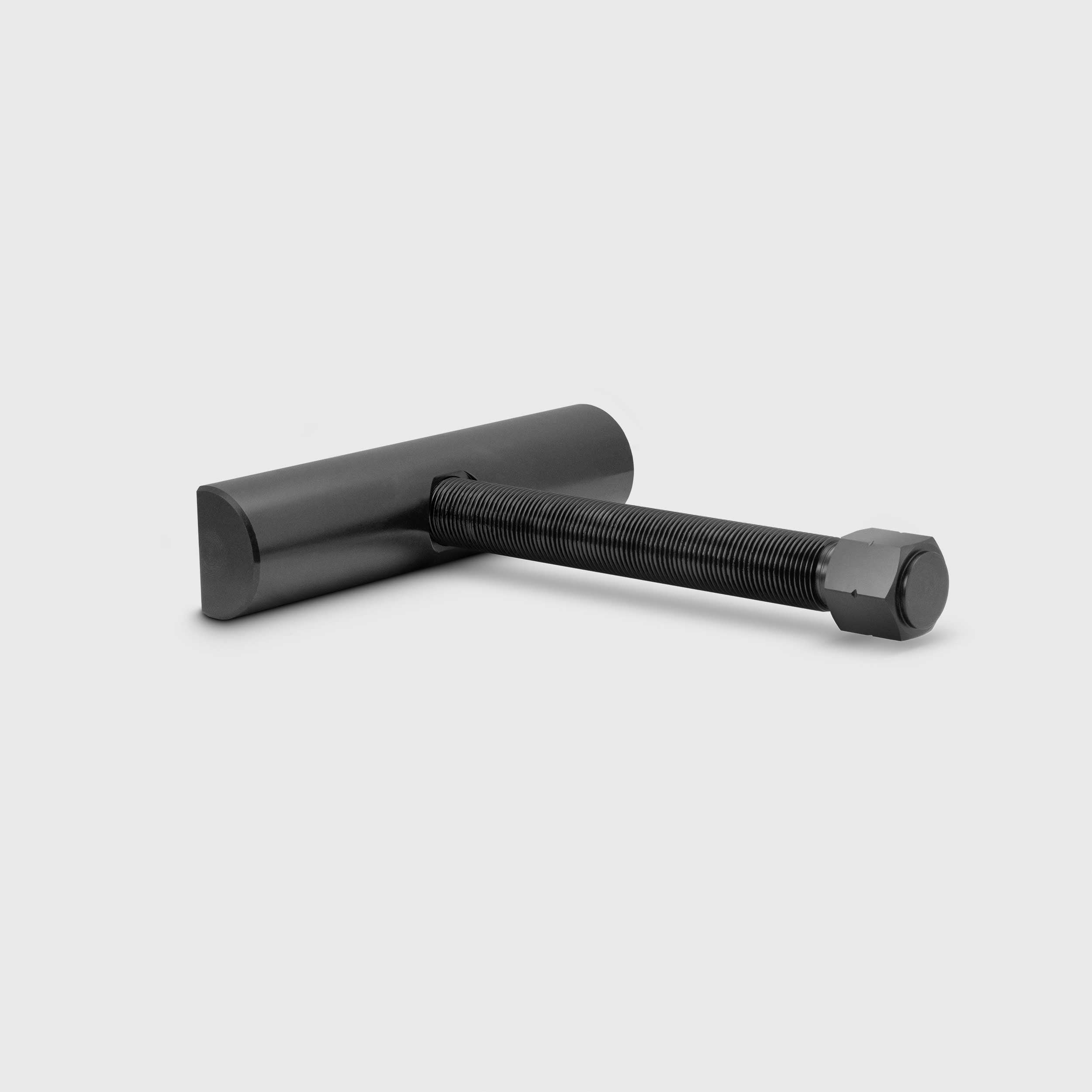

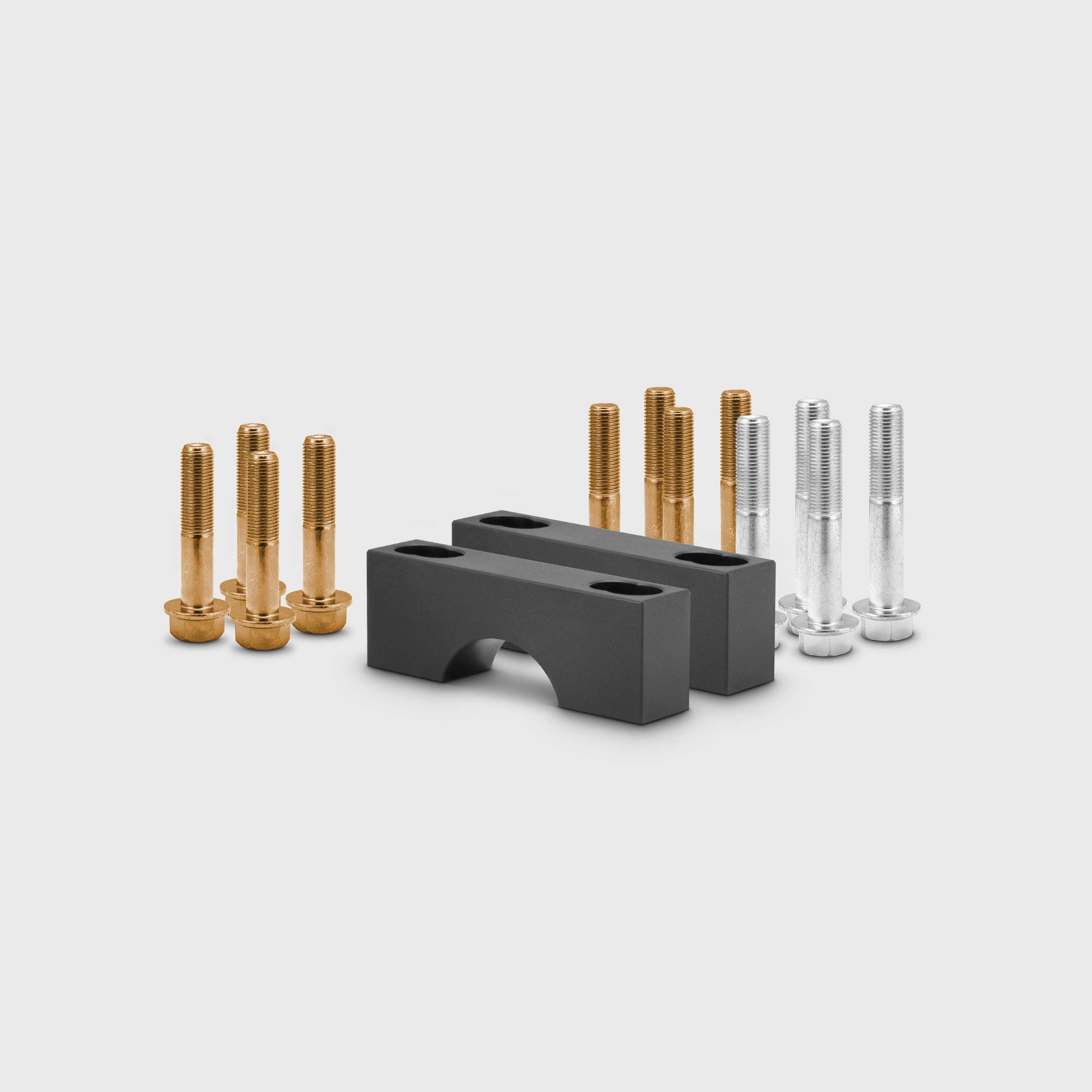

10803 | Commercial Yoke Puller
Simplifies and expedites the removal of heavy-duty yokes on driveshafts, transmissions and rear-end differentials without damage to yokes or other components.

Commonly found on class 6-8 transportation trucks and equipment. (Kenworth, Peterbilt, Freightliner, Mack, Volvo, etc.)

Spare parts for tools within this kit are located on the individual tool's product page.


What Tiger Tool U-Joint Puller is the right size for my application?
The best way to determine the size you need is by measuring the outside diameter of the bearing caps and matching the measurements below.

10105 - Removes u-joints with bearing caps 1″ to 1.25″ O.D.

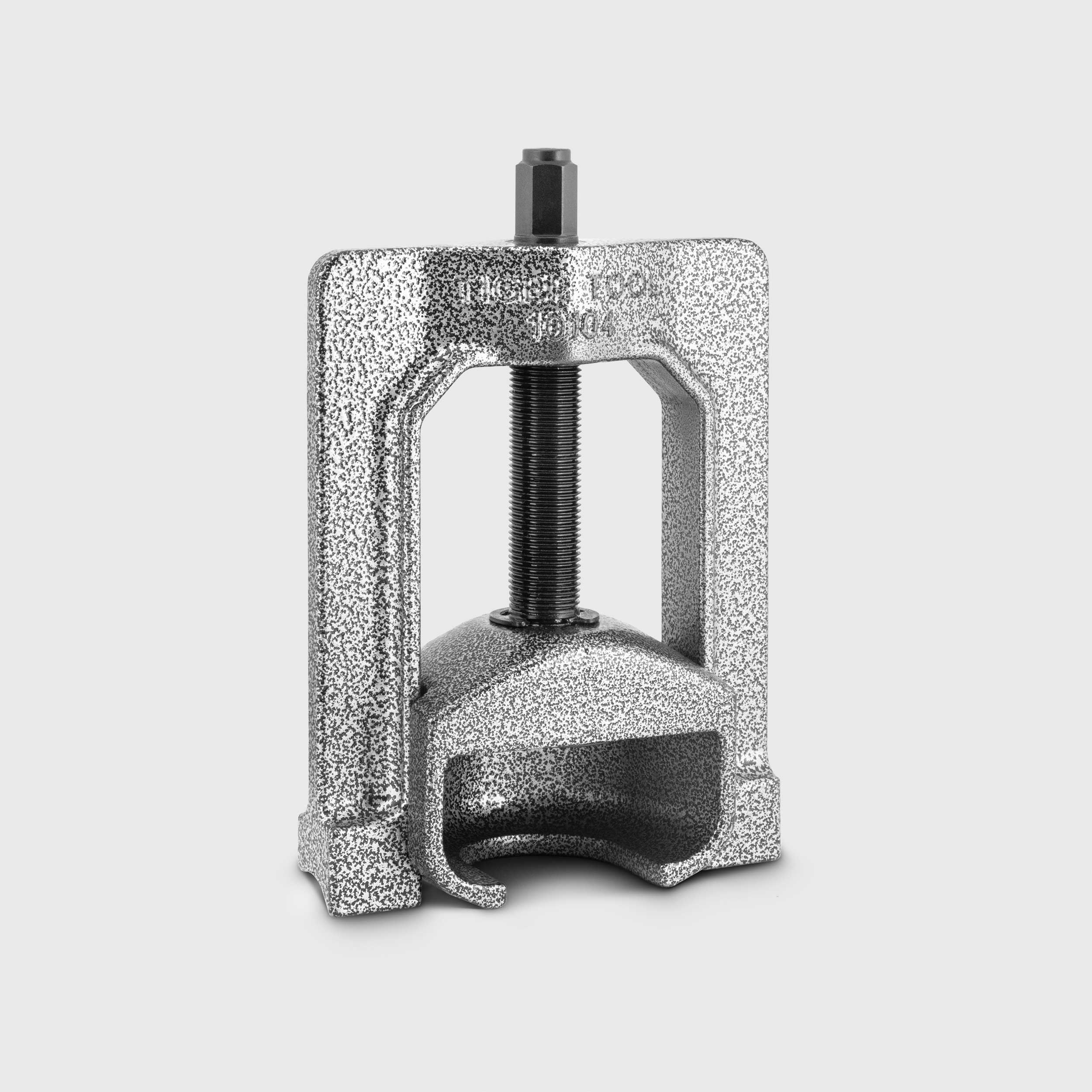

10104 - Removes u-joints with bearing caps 1.25″ to 1.7″ O.D.

10102 - Removes u-joints with bearing caps 1.5″ to 2.2″ O.D.

20155 - This is the only system on the market with the ability to completely remove u-joints and bearing caps on SPL 350, SPL 250 Lite and RPL 35 Series drivelines.

What is the difference between the 10102 and 10106?
The key difference is the larger glove design on the 10106. The glove is specifically engineered to slip over the larger yoke on the Dana/Spicer SPL 350 & SPL 250 Lite Series drivelines and Meritor RPL 35 Series drivelines while the 10102 is designed for U-Joints with bearing caps 1.5″ to 2.2″ O.D.

Proposition 65

Warning: This product may expose you to chemicals including Nickel, which are known to the State of California to cause cancer, birth defects or other reproductive harm.

Warranty & Returns

We offer a Limited Lifetime Warranty on casting, two years on machined or threaded parts and one year warranty on hydraulic components.

Our full Warranty Policy

We offer a 60 day money back guarantee should you feel as though the tool is not the right tool for you. Just be sure it's in unused condition and in original packaging.

Start a Warranty & Return Process

North American

Engineered, manufactured & assembled under one roof.
